Product

Lifting&Fixing System

Material: Cold Rolled Steel / 20# Steel
Surface Treatment: Galvanized
Alloy or Not: Non-Alloy
Thread Type: Rd12 - Rd52
Packaging: Carton Box on Pallets
Lead Time: 15-45 days
Delivery Time: 22-30 days
Warranty: 1-3 Years
Customized Support: OEM Available
Supply Ability: Up to 20 Tons per Month
Application: Precast Concrete Accessories
Place of Origin: China (Shandong)
Port: Qingdao

Inquire Now >>

Product Detail

Anchor Channels are cast into concrete eliminating the need for post installed anchors, minimizing the potential to damage

the concrete or reinforcement while drilling.

It can be used in construction industry to resist both tension and tranverse shear loading, e.g.:

Curtain wall connections,Masonry and concrete facade connections,Pipe support system,Anchoring of hand rails.

Quality features:

●adjustable,easy to install

●no need for field welding and drilling

●applicable for cracked and uncracked concrete

●available in hot-dip galcanized or stainless steel to ensure long lasting performance

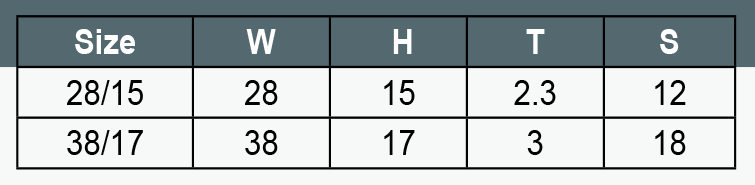

Cold rolled:28/15 38/17

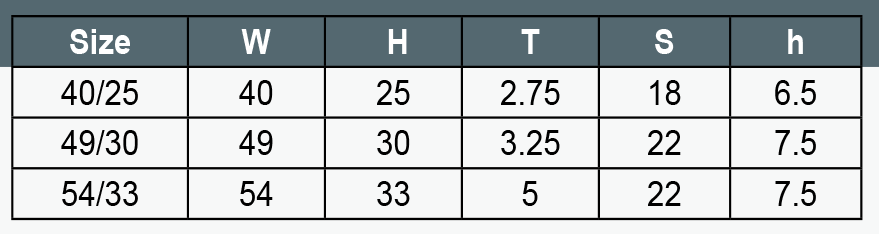

Cold rolled:40/25 49/30 54/33

About JOYO

Qingdao Huazhuo HD Machinery Co., Ltd (JOYO), established in 1998, specializes in manufacturing high-quality precast concrete accessories, rigging hardware, and lifting tools. With over 60 years of experience through our parent company, Shandong Machinery I&E Group, we ensure strict quality control and excellent customer service.

Our products, certified by ISO 9001, SGS, and CE, are exported to over 120 countries. We partner with SGS for inspections and PICC for quality insurance, ensuring reliability. As a trusted one-stop service provider, we deliver comprehensive production and logistics solutions for precast concrete accessories.
