Wire Rope Lifting Loops/Cable Loop Anchor

LIFTING CLUTCH SYSTEM

Material: Cold Rolled Steel / 20# Steel
Surface Treatment: Galvanized
Alloy or Not: Non-Alloy
Thread Type: Rd12 - Rd52
Packaging: Carton Box on Pallets
Lead Time: 15-45 days
Delivery Time: 22-30 days
Warranty: 1-3 Years
Customized Support: OEM Available
Supply Ability: Up to 20 Tons per Month
Application: Precast Concrete Accessories
Place of Origin: China (Shandong)
Port: Qingdao

Inquire Now >>

Product Detail

Wire rope lifting loop is an economical and effective lifting solution,simple in structure and easy to use.It is used for face or edge lifting.

It is made of a high grade zinc plated wire rope formed in figure 8-shape, swaged in a ferrule, with a fixing strip in the middle with an

identification label.

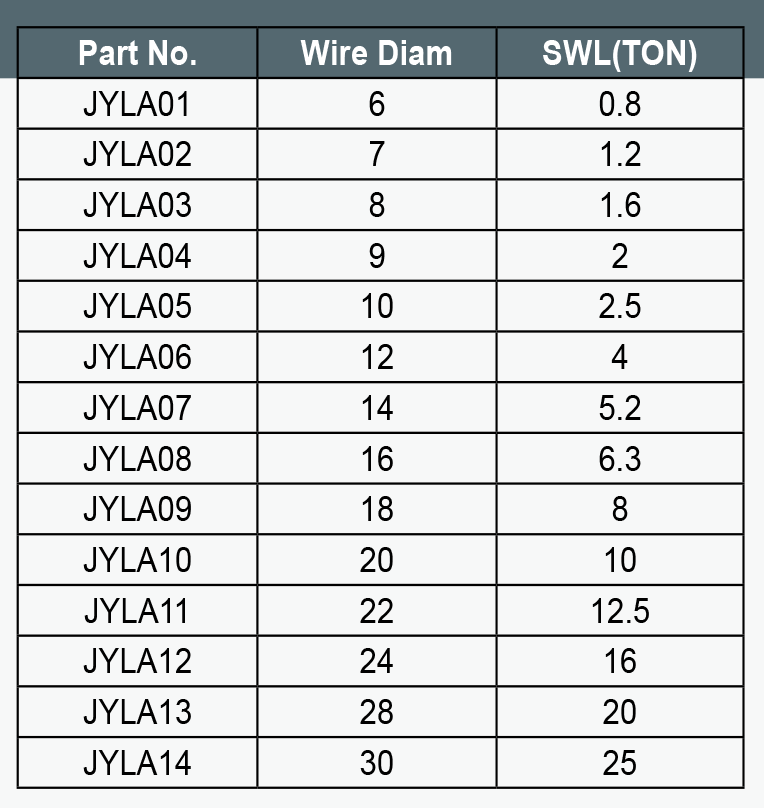

Each loop has color coded tag to mark SWL (safe working load).

Cast-in lifting loops must be installed in the direction of the expected load.It should be suspended from supports attached to the formwork so that the 2/3 of loop will be cast in and 1/3 will remain exposed.The loop must be fastened to the reinforcement cage to avoid movement during concreting.Then the exposed loop can be attached to standard crane hooks,and the curcature radius of hook shouldbe at least equal to wire rope diameter.

About JOYO

Qingdao Huazhuo HD Machinery Co., Ltd (JOYO), established in 1998, specializes in manufacturing high-quality precast concrete accessories, rigging hardware, and lifting tools. With over 60 years of experience through our parent company, Shandong Machinery I&E Group, we ensure strict quality control and excellent customer service.

Our products, certified by ISO 9001, SGS, and CE, are exported to over 120 countries. We partner with SGS for inspections and PICC for quality insurance, ensuring reliability. As a trusted one-stop service provider, we deliver comprehensive production and logistics solutions for precast concrete accessories.
