Plate Lifting Socket

Lifting&Fixing System

Material: Cold Rolled Steel / 20# Steel
Surface Treatment: Galvanized
Alloy or Not: Non-Alloy
Thread Type: Rd12 - Rd52
Packaging: Carton Box on Pallets
Lead Time: 15-45 days
Delivery Time: 22-30 days
Warranty: 1-3 Years
Customized Support: OEM Available
Supply Ability: Up to 20 Tons per Month
Application: Precast Concrete Accessories
Place of Origin: China (Shandong)
Port: Qingdao

Inquire Now >>

Product Detail

Plate lifting socket is ideal for the face of thin panels or top slabs,which are lifted perpenicular to their largest surface.The footplate and the socket are fully welded, so the insert is effectively sealed.

The preferred lift angle is ᵦ≤30°

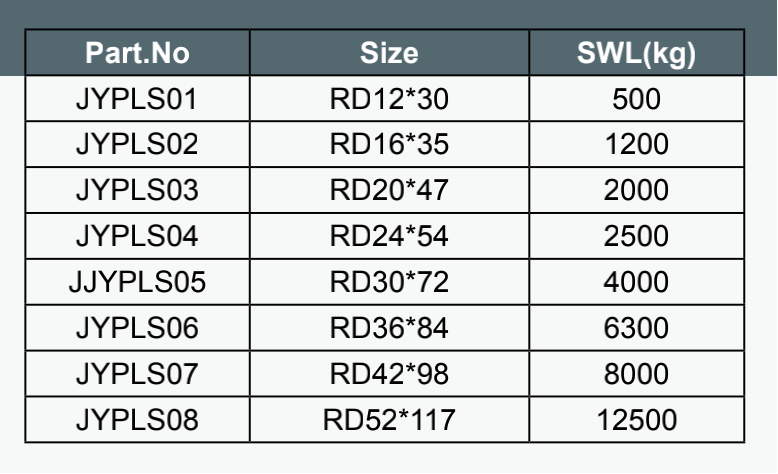

The safe working loads presented are after the application of a safety catior on test loads of 2 for 15MPa concrete and 3 for steel.
